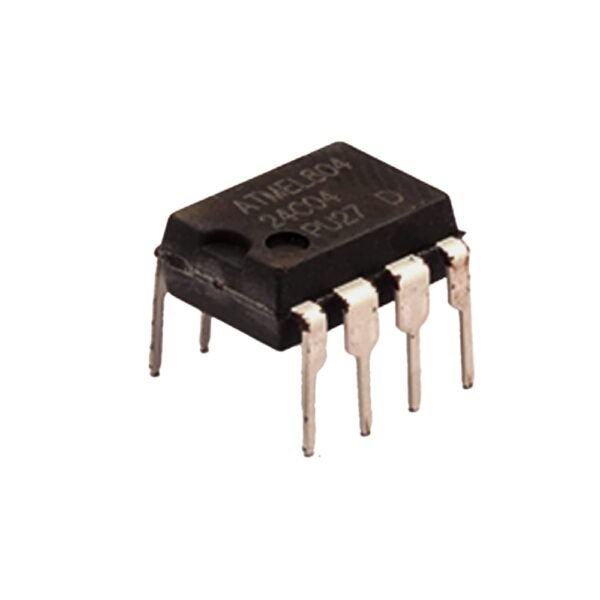

24C04 ( EEPROM 4K (512×8)bit )

DescriptionThe 24C04 provides 2048/4096 bits of serial electrically erasable and programmable read-only memory (EEPROM) organized as 256/512 words of 8 bits each The device is optimized for use in many industrial and commercial applications where low-power and low-voltage operation are essential. The 24C04 is available in space-saving 8-lead PDIP, a-lead JEDEC SOIC, and 8-lead TSSOP packages and is accessed via a Two-wire serial interface. In addition, the 24C04 is available in 1.8V (1.8V to 5.5V) version.Features:-• Low-voltage and Standard-voltage Operation 1.8 (VCC = 1.8V to 5.5V)• Operating Ambient Temperature: -400C to 850C• Internally organized 256 X 8 (2K), 512 X (4K)• Two-wire Serial Interface• Schmitt Trigger, Filtered Inputs for Noise Suppression• Bidirectional Data Transfer Protocol• 1 MHz (5V), 400 kHz (1.8V, 2.5V, 2.7V)Compatibility:-• Write Protect Pin for Hardware Data Protection• 8-byte Page (2K), 16-byte Page (4K) write Modes• Partial Page Writes Allowed• Self-timed Write Cycle (5 ms max)• High-reliability– Endurance: 1 Million Write Cycles-Data Retention: 100 Years• 8-lead PDIP, 8-lead JEDEC SOIC and 8-lead TSSOP PackagesSpecification:-ParameterSpecificationDC Supply Voltage-0.3V to 7VInputs and Outputs VoltageGND-O.3V to VCC 0.3VOperating Ambient temperature40°C to 85°CStorage Temperature55°C to 125°CRelated Document:-  24C04 IC Data Sheet
