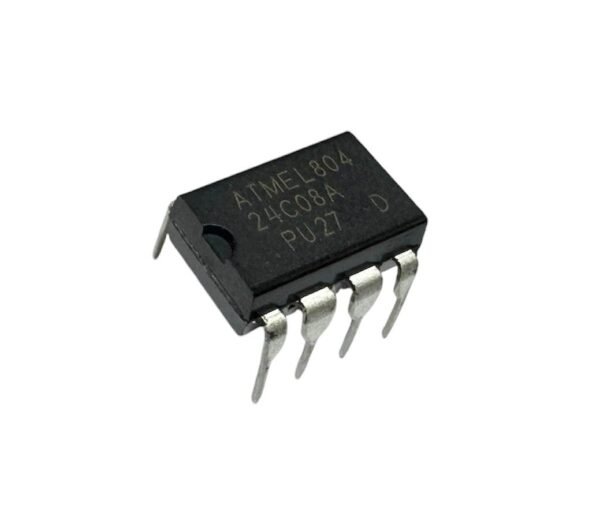

24C08A ( EEPROM 8K (1024×8)bit )

DescriptionThe AT24C08A provides 8192 bits of serial electrically erasable and programmable read only memory (EEPROM) organized as 1024 words of 8 bits each. The device is optimized for use in many industrial and commercial applications where low power and low voltage operation are essential. The AT24C08A is available in space saving 8-pin PDIP, 8-pin, 14-pin SOIC, and 8-pin TSSOP packages and is accessed via a 2-wire serial interface. In addition,Features:-• Low-voltage and Standard-voltage Operation (VCC = 2.7V to 5.5V) • Internally Organized : 1024 x 8 (8K) • Two-wire Serial Interface • Schmitt Trigger, Filtered Inputs for Noise Suppression • Bidirectional Data Transfer Protocol • 100 kHz (1.8V) and 400 kHz (2.7V, 5V) Compatibility • Write Protect Pin for Hardware Data Protection • 8-byte Page (1K, 2K), 16-byte Page (4K, 8K, 16K) Write Modes • Partial Page Writes Allowed • Self-timed Write Cycle (5 ms max) • High-reliability– Endurance: 1 Million Write Cycles– Data Retention: 100 Years • Automotive Devices Available • 8-lead JEDEC PDIP, 8-lead JEDEC SOIC, 8-lead Ultra Thin Mini-MAP (MLP 2×3), 5-lead SOT23, 8-lead TSSOP and 8-ball dBGA2 Packages Related Document:- 24C08 IC Datasheet
