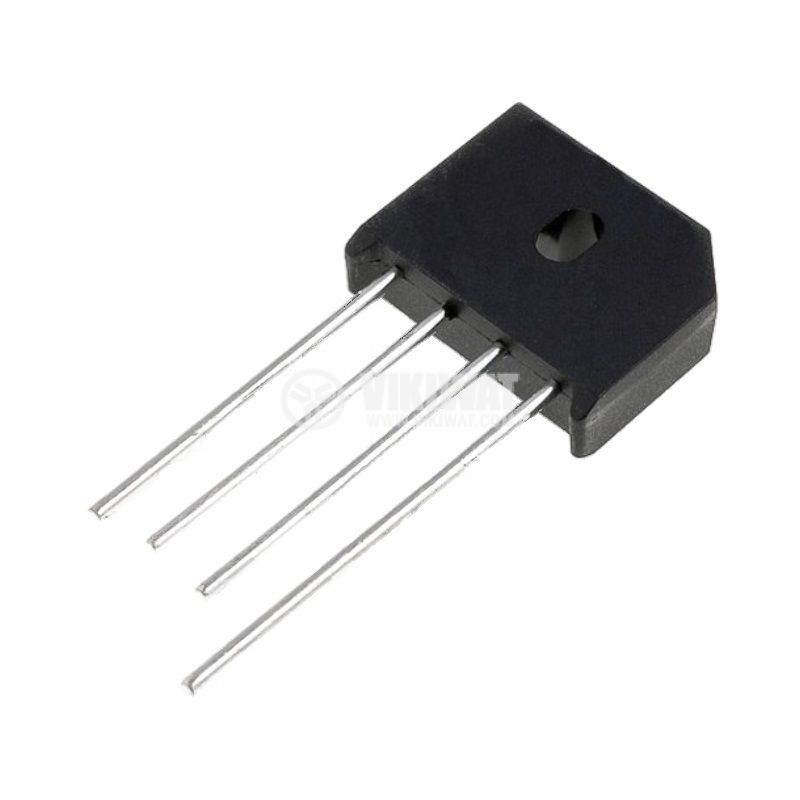

Bridge (rectifier) – 10A

specifications: model: KBU1010 standard parameters: 1000 V 10A KBU1010 Bridge Rectifier Data Sheet A bridge rectifier is an arrangement of four or more diodes in a bridge circuit configuration which provides the same output polarity for either input polarity. It is used for converting an alternating current (AC) input into a direct current (DC) output. A bridge rectifier provides full-wave rectification from a two-wire AC input, therefore resulting in lower weight and cost when compared to a rectifier with a 3-wire input from a transformer with a center-tapped secondary winding. Features Low Forward Voltage Drop High Current Capability High Reliability High Surge Current Capability Specifications Bridge Type: Single Phase Diode Type: Bridge Rectifier Peak Average Forward Current: 10 A Peak Forward Voltage: 1.0 V Peak Non Repetitive Forward Surge Current: 300 A Peak Reverse Current: 10 μA Peak Reverse Repetitive Voltage:  1000 V Peak RMS Reverse Voltage: 700 V Squared Current Time Rating: 373 A2s Mounting Type: Through Hole Pin Count: 4 Operating Temperature Range: -65 to 125 °C Dimensions: 23.7 x 7.1 x 19.3 mm   Category: Bridge Rectifiers
