Avante “Velira” JOY by Heartway

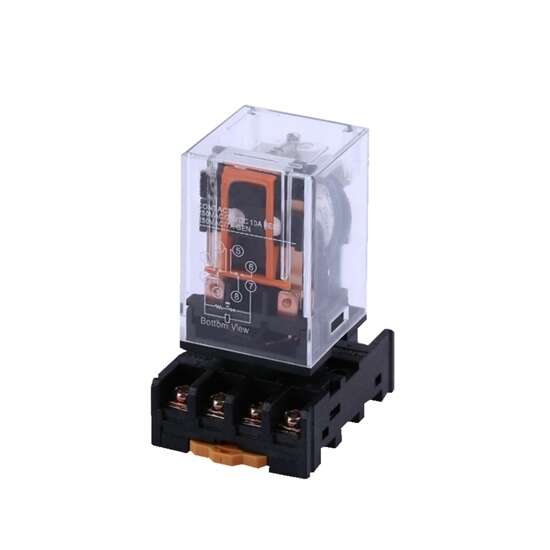

Specification : Model _ ATO-MK2P-1 (Relay with Socket) Dimension (L*W*H) 35×35×53mm Weight 76g AmbientTemperature -25℃~ 55℃ Terminal Type Plug in Number of Pins 8 Technical Parameters Contact Form DPDT Contact Material Silver alloy Contact Capacity (Resistive load) 10A/250V AC 28V DC Coil Power DC≤2W, AC≤3.5VA Coil Voltage Optional: 12V DC, 24V DC, 12V AC, 24V AC, 36V AC, 110V AC, 220V AC Pick-up Voltage at 23℃ DC≤75%, AC≤80% Drop-out Voltage at 23℃ DC≥10%, AC≥30% Contact Resistance @6V DC 1A ≤100MΩ Dielectric Strength Between open contact ≥1200V AC 50Hz/1min Between adjacent contact ≥1500V AC 50Hz/1min Between coil & contact ≥1500VAC 50Hz/1min Leakage current ≤1mA Insulation Resistance (MΩ) ≥500MΩ at 500V DC Service life Electrical 105 Times (Frequency: On 1 Time/1s, Off 1 Time/1s) Mechanical 106 Times (Frequency: 300 Time/1min) Categories: Relays, Relay module$ 5.95 Add to cart -
