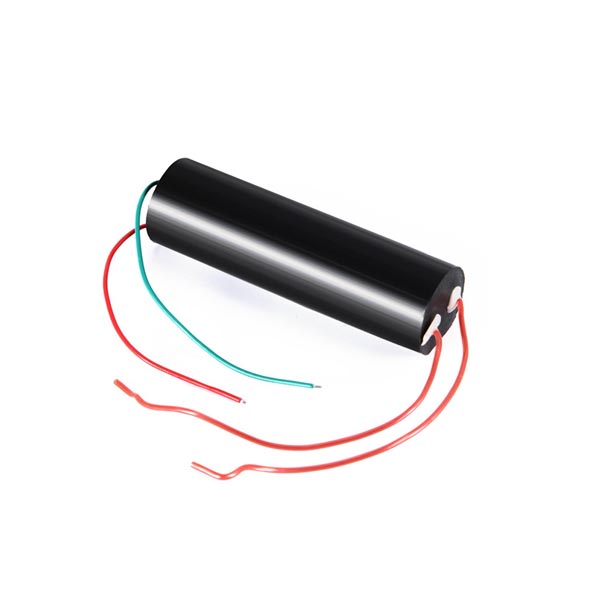

Step Up Power Module 3-6V to 400KV

DC 3V-6V bis 400kV 400000V Boost Step-up Power Module High Voltage Generator Pulse Current Test Arc Distance Board input voltage: DC 3 V to 6 V Input current: 2 A – 5 A High pressure type: the type of pulse current Output voltage: 400000 v(Please pay attention to safety) High-pressure discharge distance between 10 mm – 20 mm The output high voltage wire length: 100 mm Input power cord length: 100 mm (the red line is positive) Wiring: Red and green power connection red line:” ” green line “-“ output: From another wire side Please notice: the high-voltage module should avoid the use of electricity in high voltage no-load . (Power must be adjusted to a suitable distance to the high-voltage output line, battery capacity is proportional to the distance and the use of the high-pressure arc ( not a voltage as high as possible, you must provide enough current ) . Experimental test of the arc distance from short to long , Do not exceed the maximum arc distance electricity, energy can not be released due to high pressure , can easily damage the module. ) Work: intermittent, continuous work does not allow more than 1 minute and the output side does not allow shorting. Improper voltage and long working hours easily damaged module Category: DC/DC Converter
