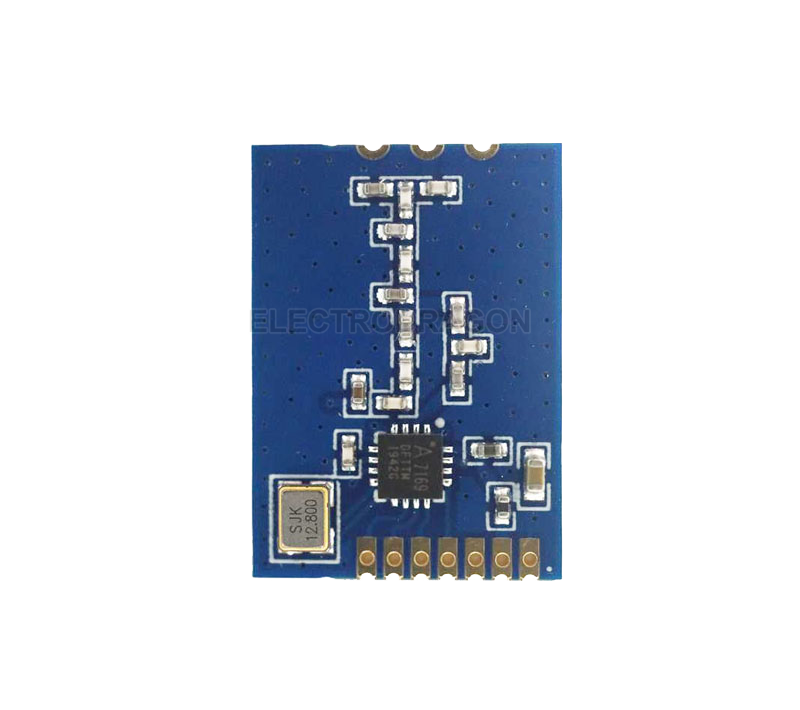

A6169 RF Transceiver Module, 433MHZ SPI

Description ED7169 is a module designed based on Taiwan’s Amicomm wireless transceiver chip A7169. It is a compact, ultra-low-power wireless transceiver module. A7169 is a sub-1G frequency band wireless transceiver chip with an output power of up to 20dBm and a transmission rate of 500Kbps. Users do not need to have a deep understanding of radio frequency circuit design, and can use this module to easily develop wireless products with stable performance and high reliability. Specifications: 433mhz ISM Band, configurable 410-510mhz Up to 20dBm Receive current down to 3.2mA (lower than most competitors) Work voltage 2.0-3.6V, typical 3.6V Work Tempearture -40~85 Power comsumption: 100mA transmit @ max transmission power 3.2mA receive 1uA sleep RF mode FSK/GFSK Speed 2~500Kbps Interface SPI Dimension 20.6 x 14.8 mm Features: Support 433MHz frequency band, strong penetration Transmission power 20dBm, power software adjustable Ultra-low power consumption, receiving current 3.2mA Support FSK/GFSK modulation mode Communication rate supports 2～500Kbps SPI communication interface, can be directly connected to various microcontrollers Standard power supply voltage 3.3V Industrial standard design, supporting long-term use at -40～ 85℃ Ultra small size, only 20.6×14.8mm Stamp hole design, convenient for mass production Shipment not includes the 433mhz spring antenna, please order it here. Documentation please see on this page.
